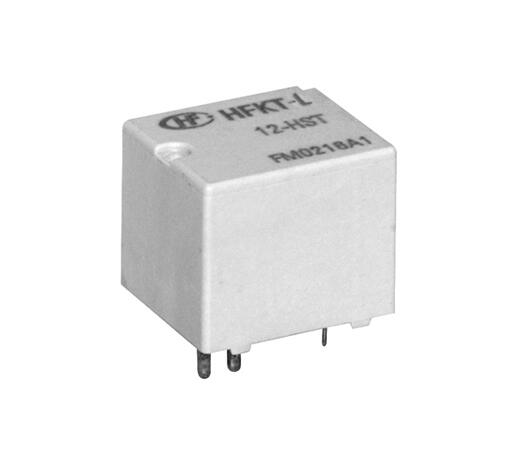

Hongfa HFKT-L/HFKT-LTSeries
Description
Package Information
Inquiry
Features
● Max. continous current 60A
● Max. making current 200A
● Extended temp. range up to 125*
● With highly established reliability
● Strong resistance ability to shock & vibration
● No change of switching state version at breakdown
of battery voltage
● Reflow soldering version available
● RoHS & ELV compliant
PACKING LIST
| Type | Packing Method | Min. QTY of Package | Tube Size (L x W x H cm) | Carton Size (L x W x H cm) | Approx.Unit weight (g) | QTY/CTN (PCS) | Approx.N.W. (kg) | Approx.G.W. (kg) | Stacking Layers Limit (n) |
| HFKT(tape packing) | Reel | 120 pcs/reel | φ38×w4.4 | 43x43x31 | 12 | 600 | 7.2 | 17.74 | 6 |
| HFKT | Tube | 30 pcs/tube | 52.3x2.1x2.3 | 56x21x17 | 12 | 1200 | 14.4 | 11.27 | 5 |
| HFKT | Carton | 100 pcs/box | - | 43x27x23 | 12 | 1000 | 11 | 12.6 | 5 |
