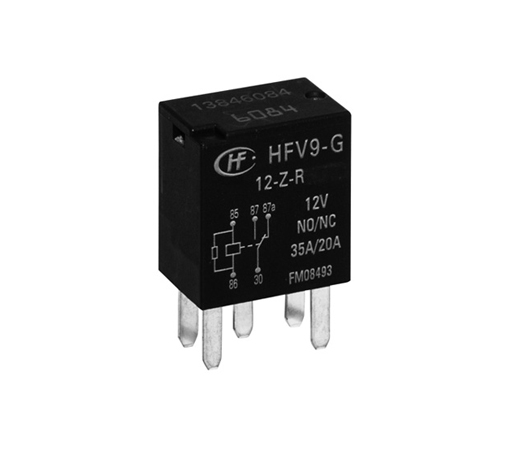

Hongfa HFV9-G Series
Description
Package Information
Inquiry
Features
● Extended temp. range up to 125℃
● 1 Form A & 1 Form C contact arrangement
● 2.8mm QC terminals
● Standard type and weatherproof type available
● RoHS & ELV compliant
Application scenarios
Headlight control, oil pump control, horn control, start and stop control, A/C compression clutch control, etc.
PACKING LIST
Type | Packing Method | Min. QTY of Package | Tube Size (L x W x H cm) | Carton Size (L x W x H cm) | Approx.Unit weight (g) | QTY/CTN (PCS) | Approx.N.W. (kg) | Approx.G.W. (kg) | Stacking Layers Limit (n) |
HFV9-G | Tube | 23 pcs/tube | 57.2x1.8x4.1 | 61x20x18 | 20 | 690 | 13.8 | 16.8 | 5 |
HFV9-G | Tray | 120 pcs/tray | - | 35x23x23 | 20 | 600 | 12 | 13 | 5 |
