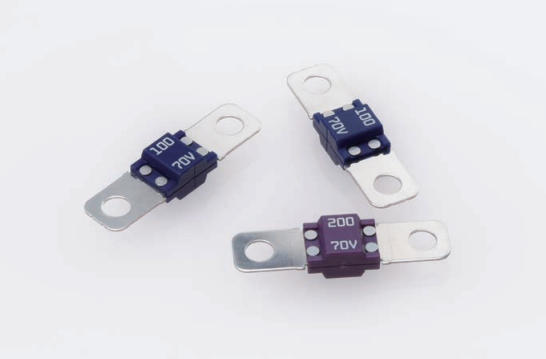

PEC SBFW-L48V-M6L Series
Description
Package Information
Inquiry

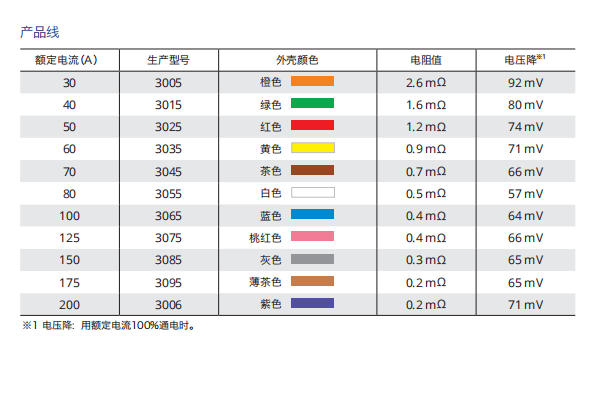

Rated current(A) | Production model | color | Voltage drop |
30A | 3005 | Orange | 120 mV |
40A | 3015 | Green | 120 mV |
50A | 3025 | Red | 120 mV |
60A | 3035 | Yellow | 110 mV |
70A | 3045 | Brown | 110 mV |
80A | 3055 | White | 110 mV |
100A | 3065 | Blue | 100 mV |
125A | 3075 | Pink | 100 mV |
150A | 3085 | Gray | 100 mV |
175A | 3095 | Light brown | 100 mV |
200A | 3006 | Violet | 100 mV |
