PEC EVFP-φ38*64 Series
Description
Package Information
Inquiry

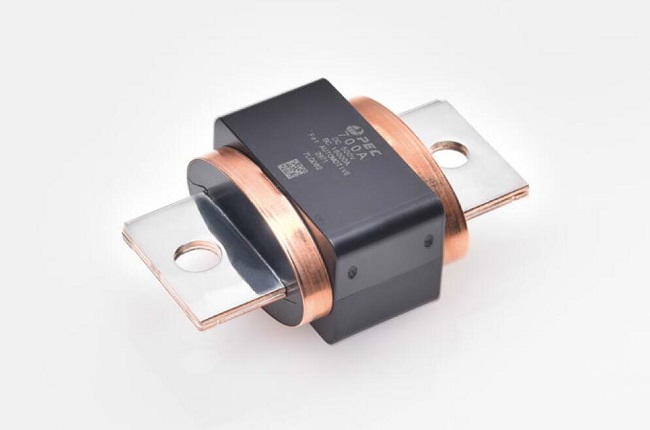

Product name: EVFP new energy vehicle fuse
Rated voltage:DC500V
Breakout ability:16000A
Temperature range:-40˚C~125˚C
Min packaging:40PCS
Compatible with: ROHS
| Product Line | Current（A） | Bolt size | diameter | Resistance value（ mΩ ） | Voltage drop（mV） |
| 2976 | 600 | M8 | φ38X64 | 0.14 | 52 |
| 2977 | 700 | 0.12 | 50 | ||
| 2978 | 800 | 0.10 | 51 | ||
| 2978 | 900 | 0.088 | 53 | ||
| 2978 | 1000 | 0.081 | 51 |
