PEC EVFP-φ38 Series
Description
Package Information
Inquiry

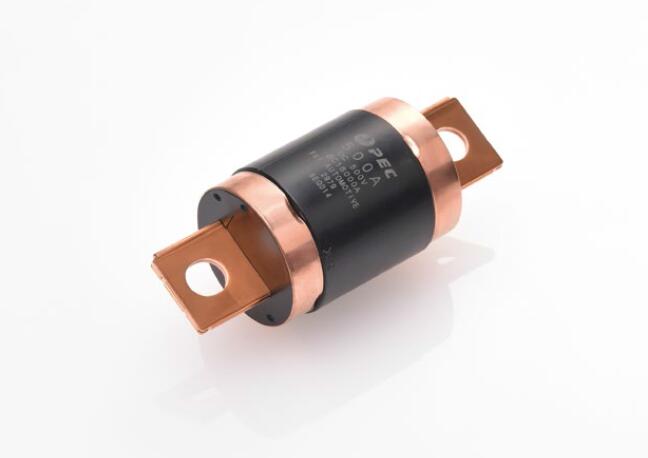

Product Name:EVFP New energy vehicle fuse
Rated voltage：＜DC500V
Breakout ability：30000A
Temperature range:-40˚C~125˚C
Min packaging:40PCS
Compatible with: ROHS

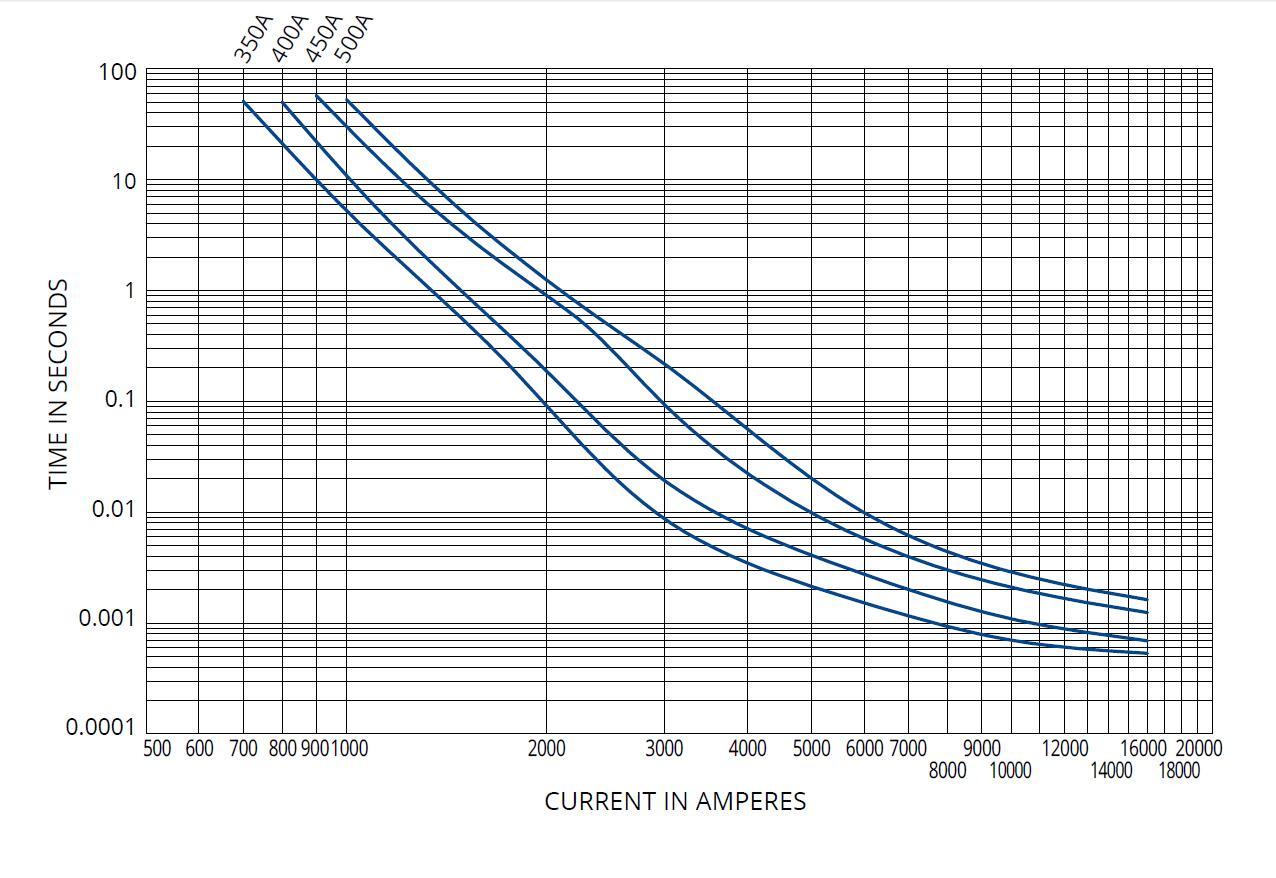

Fuse characteristics | ||
Current Percentage % | Min | Max |
110 | 4H | / |
200 | 1s | 300s |
300 | 0.2s | 30s |
500 | 0.05s | 1s |

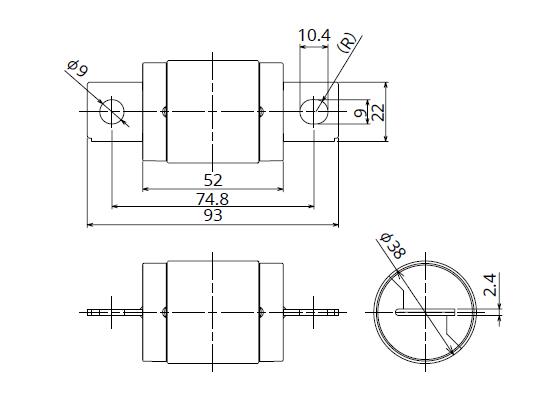

Product Line | Current（A） | Bolt size | diameter | Resistance value（mΩ） | Voltage drop（mV） |
2976 | 350 | M8 | φ38 | ||
2977 | 400 | ||||
2978 | 450 | ||||
2979 | 500 |
